MB8S-110
Dual Bags Automatic Filling & Sealing Packaging Machine
Dual Bags Automatic Filling & Sealing Packaging Machine
Summary:
Main Performance and features
This machine combines with a variety of filler equipment such as multi-heads weigher, liquid/paste filler, pickle measurement equipment , powder Auger filler and so on.
Work Process
1.Feed bag, 2. Open bag (code option), 3. Fill once, 4. Fill twice, 5. Clean bag mouth , 6.Exhaust, 7. Seal, 8. Seal& Output.

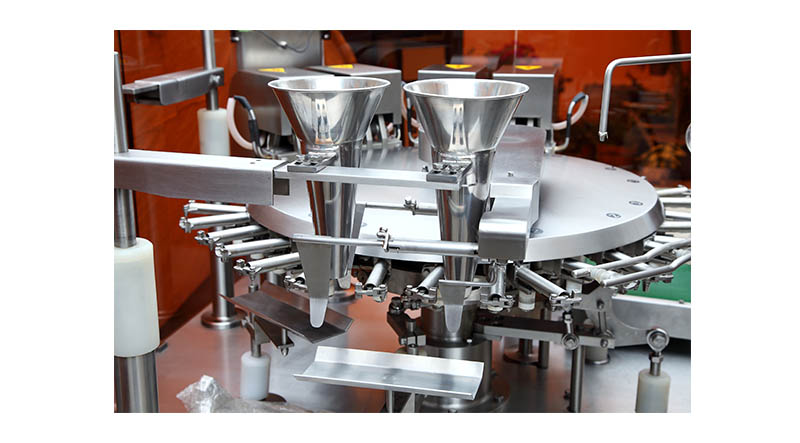

机械细节图
Main Technical Parameter
|
Model |
MB8S-110 |
| Bags Specifications | W:70-110mm L:100-300mm |
| Bag Type | Handbags,4-side sealing bags , 3-side sealing bags , paper bags ,compound bags ,etc. |
| Filling Range | 10-150g |
| Packing Speed | 80-110Bags/Min (Packing speed is related to materials ) |
| Weight | 2000kg |
| Host Power | 2.5Kw |
| Drive Power | 380V 50HZ 3-phase 5 wire system |
| Dimensions | 2100*1560*1560 |
| Air consumption | <0.5m3 /Min (Compressed air provided by the user ) |

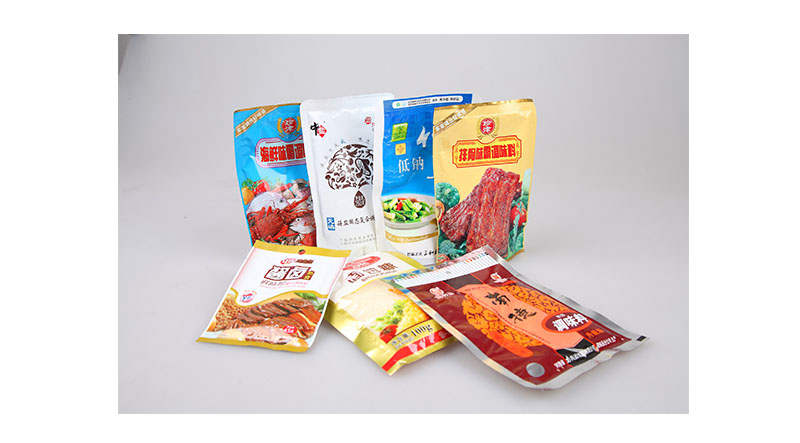

Sample
