Liquid(paste) Automatic Metering Packaging Machine
Summary:
1) Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.
2) The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch..
3) Automatic checking system can check bag situation, filling and sealing situation.
The system shows 1.no bag feeding, no filling and no sealing. 2.no bag opening/opening error, no filling and no sealing 3.no filling, no sealing..
4) The product and pouch contact parts are adopted stainless steel and other advanced material to guarantee the hygiene of products.
1.Feed bag
2.Coding
3.Bag opening
4.Falling material
5.Cleaning bag
6.Reserve
7.Seal once
8.Seal twice
9.Forming &output
|
Model |
MB8-200G |
MB8-300G |
||
|
Bags Specifications |
W:70-200mm L:100-300mm |
W:170-300mm W:200-500mm |
||
|
Bag Type |

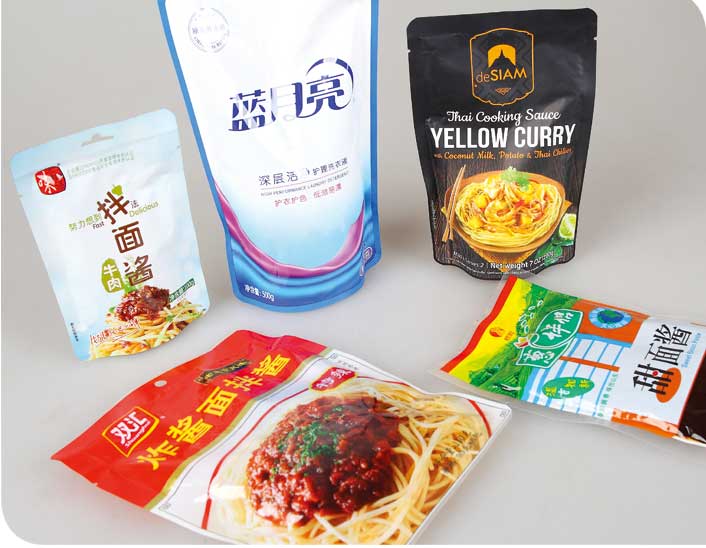

Stand-up bags, handbags, zipper bags, 4-side sealing bags, 3-side sealing bags, paper bags, M type bags, compound bags, etc. |
|||
|
Filling range |
20-5000g |
|||
|
Packing speed |
35-55bags/min |
15-45 bags/min |
||
|
Weight |
1500kg |
|||
|
Host power |
4KW(no including vacuum pump) |
|||
|
Drive power |
3-phase 5-wire system 380V 50HZ |
|||
|
Dimensions |
1700×1600×1600mm |
1800×1900×1600mm |
||
|
Air consumption |
≥0.4m³/min( compressed air provided by the user) |
|||
