MB8-200F
Powder Automatic Packaging Machine

Summary:

Main Performance and features

This set of equipment is composed of pouch packing machine and screw scale, applicable to the stand up pouch, hand bag, zipper bag,four sides sealing bag, three sides sealing bag, paper bag, compound bag and so on .

Work Process

1. feed bag , 2. coding (option), 3. open bag. 4.fall material , 5.sweep dust & vibration 6、6.seal , 7.seal , 8.forming and output.

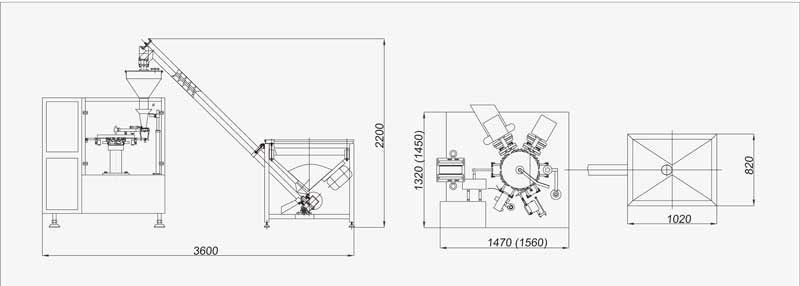

机械细节图
MB8-200FPowder Automatic Packaging Machine承印材料
Main Technical Parameter

Model

MB8-200F

Speed
30-60bags/min

Bags Specifications

W:70-200mm  L:100-300mm

Filling range

10-500g

Packing accuary

Error≤±1g(The measuring accuracy is depending on the materiak)

Host power


3-phase AC 380V


Control supply
DC24V

Power

3.8KW

Dimensions

3500×1770×2840mm(including conveyor and elevator)

Weight

1500kg

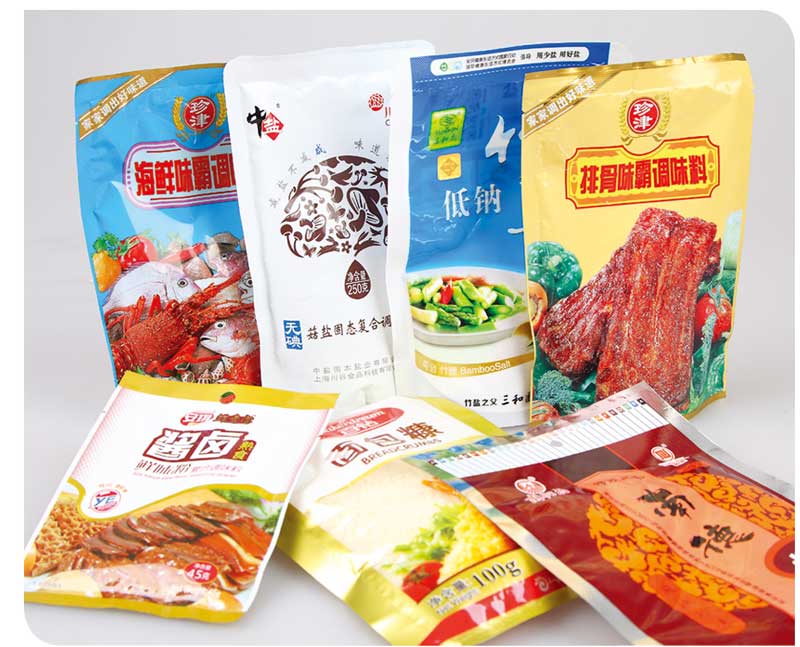

Sample
MB8-200FPowder Automatic Packaging Machine样品
