MB8S-110
Double Bag Automatic Filling Packaging Machine

Summary:

This equipment matches the pre-made bag rotary packaging machine with the variety of measurement methods, e.g.combination weigher, liquid(paste)controller, pickle measurement machine, powder screw weigher.

Main Performance and features

Work Process

1.Feed bag, 2. open bag, 3. fill material, 4. add liquid, 5. reserve, 6. reserve, 7. seal, 8. output.

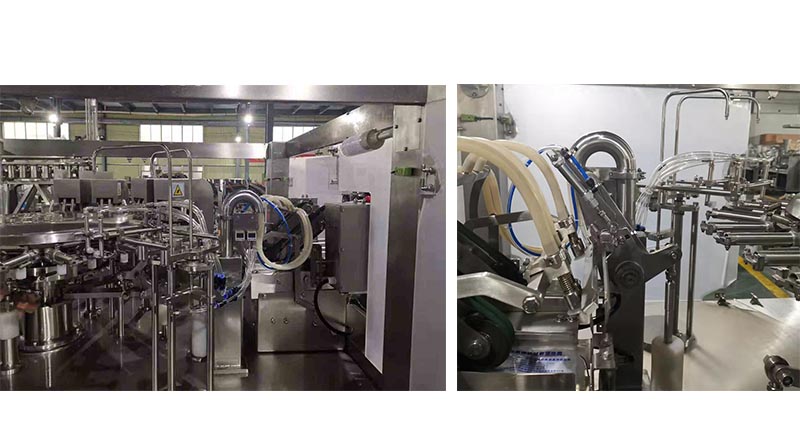

机械细节图

MB8S-110Double Bag Automatic Filling Packaging Machine承印材料

Main Technical Parameter

Model	MB8S-110
Bags Specifications	W:70-110mm L:100-300mm
Bag Type	handbags, 4-side sealing bags, 3-side sealing bags, paper bags, compound bags, etc.
Filling range	10-150g
Packing speed	80-110bags/min
Weight	2000kg
Host power	4KW(not including vacuum pump)
Drive power	3-phase 5-wire system 380V 50HZ
Dimensions	2100×1560×1560mm
Air consumption	≤0.5m3/min( compressed air provided by the user)

Sample

MB8S-110Double Bag Automatic Filling Packaging Machine样品
