Premade Pouch Packaging Machine
Summary:

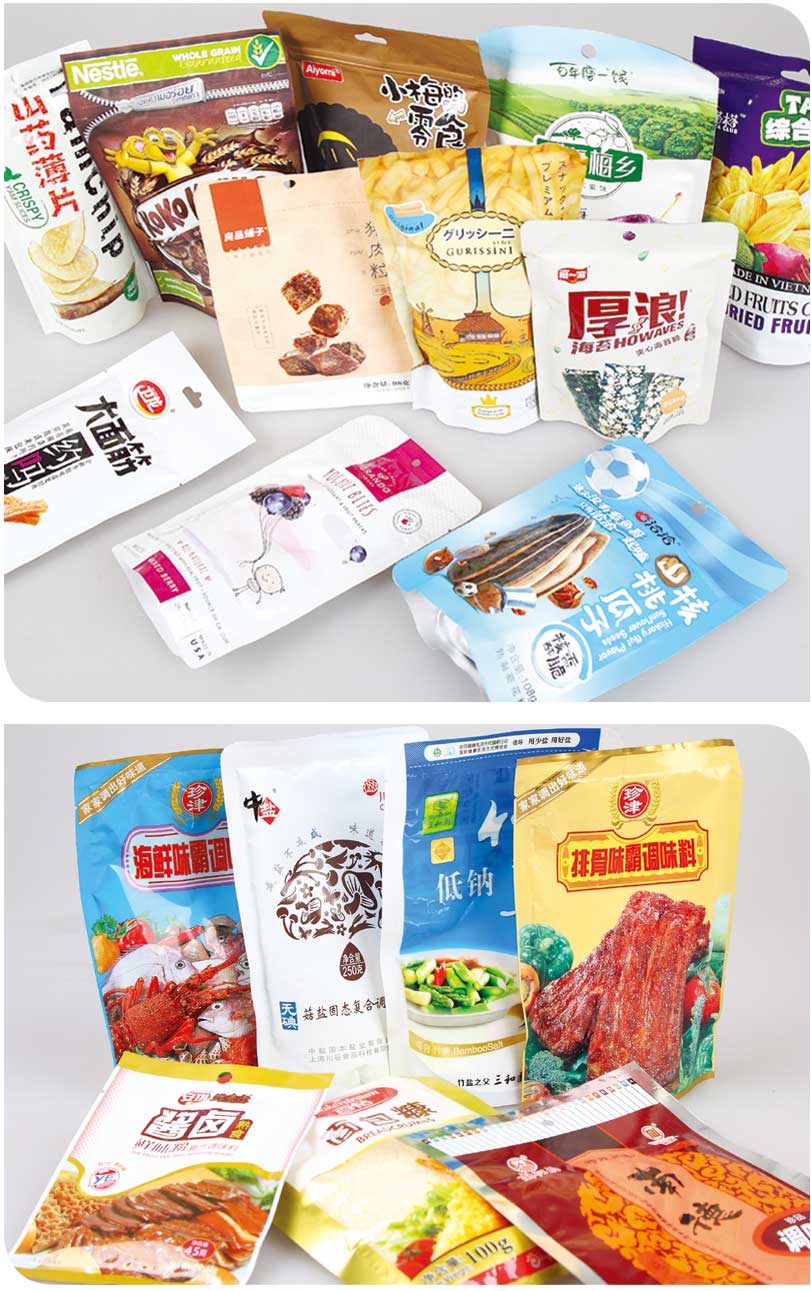

1. Candy, cornmeal, preserved fruit, chocolate, pan cake, cake, puffed food, etc.
2. Juice, tomato sauce, peanut sauce, chili sauce, washing liquid and detergent, etc.
3. Milk powder, coffee, spice and additive, etc.
4. Roasted seeds and nuts, dry fruit, leisure food.
1. Feed bag, 2. code, 3. open bag, 4. fill& vibration, 5. fill(2 time), 6. seal(once), 7. seal(twice), 8. form & output.
|
Model |
MB8-200C |
MB8-300C |
||
|
Bags Specifications |
W:70-200mm L:100-300mm |
W:170-300mm W:200-500mm |
||
|
Bag Type |
Stand-up bags, handbags, zipper bags, 4-side sealing bags, 3-side sealing bags, paper bags, M type bags, compound bags, etc. |
|||
|
Filling range |
20-5000g |
|||
|
Packing speed |
35-55bags/min |
35-45 bags/min |
||
|
Weight |
1500kg |
|||
|
Host power |
4KW(no including vacuum pump) |
|||
|
Drive power |
3-phase 5-wire system 380V 50HZ |
|||
|
Dimensions |
2530×1400×1560mm |
2950×1700×1560mm |
||
|
Air consumption |
≥0.4m³/min( compressed air provided by the user) |
|||
