Marinated Prodcts Manual Feeding Vauum Packing Machine
Summary:
1. Automatic rotary vacuum packaging machine separated by two rotary body composition (filling and vacuum systems).
2. Easy to operate: PLC touch screen control, man-machine interface operating system, intuitive and easy to operate.
3. Easy to adjust: real fully automated. Just part of the required input parameters from the man-machine interface, all parts of the packaging machine can be adjusted to the desired command.
4. Perfect prevention systems, may only detect whether it opens the bag, and opening bags is complete, in the case of inappropriate feeding does not feed heat sealing. No wasting bags and material, it costs savings.
5. The device complies with hygienic standards of food processing machinery, equipment and material contact parts made of 304 stainless steel or other materials with food hygienic requirements processing, and ensure food hygiene and safety, in line with GMP standards.
6. The use of prefabricated bags, high sealing quality, improve product quality.

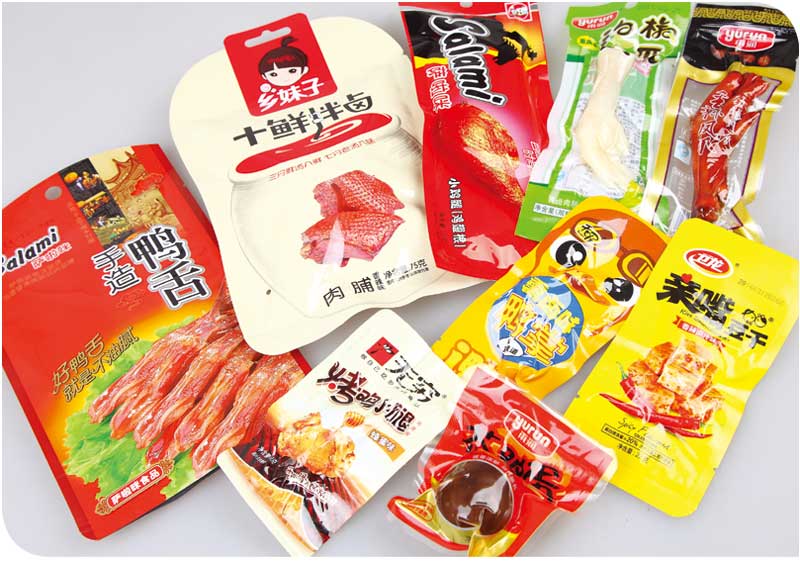

7. Suitable packaging materials range: Marinated Products which are suitable for manual feeding, such as duck neck, duck wing, duck leg,dried fish, and squid aberdeen.
1. feed bags, 2. open bags, 3. fall material, 4. add liquid, 5. reserve, 6.reserve, 7. pass bags, 8. reserve (vacuum),
1. receive bags, 2. close the lid, 3. vacuum one time, 4. vacuum twice, 5. vacuum three times, 6. vacuum four times, 7. seal, 8. seal&cool, 9. deflate, 10. open the lid and output.
Model |
MB8ZK10-130 |
MB8ZK10-150 |
MB8ZK10-200 |
Bags Specifications |
W:70-130mm L:80-210mm |
W:70-150mm L:80-230mm |
W:80-200mm L:80-300mm |
Bag Type |
Stand-up pouches, handbags, zipper bags, 4-side sealing bags, 3-side sealing bags, paper bags, compound bags, etc. |
||
Filling range |
10-200g |
||
Packing speed |
35-55bags/min |
35-45 bags/min |
|
Weight |
2400kg |
||
Host power |
4KW(no including vacuum pump) |
||
Drive power |
3-phase 5-wire system 380V 50HZ |
||
Dimensions |
4000×2200×2200mm(without elevator) |
||
Air consumption |
≥0.4m³/min( compressed air provided by the user) |
||
Cooling Water |
Cooling water: 15℃-20℃、 3liters/min (recommended with cooler) |
