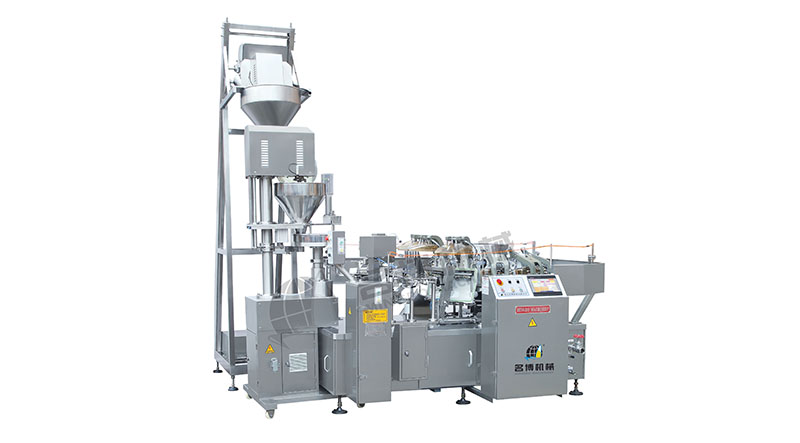

Pickles Automatic Vacuum Packaging Machine


Main Performance and features

1. Automatic vacuum packaging machine separated by two rotary body composition (filling and vacuum systems
2. Easy to operate: PLC touch screen control, man-machine interface operating system, intuitive and easy to operate
3. Easy to adjust: real fully automated. Just part of the required input parameters from the man- machine interface, all parts of the packaging machine can be adjusted to the desired command
4. The high degree of automation: up automatic vacuum requirements, weighing and packaging process to achieve unmanned. If there is fault alarm occurs
5. Perfect prevention systems, may only detect whether it opens the bag, and opening bags is complete, in the case of inappropriate feeding does not feed heat sealing. No wasting bags and material, it costs savings
6. The device complies with hygienic standards of food processing machinery, equipment and material contact parts made of 304 stainless steel or other materials with food hygienic requirements processing, and ensure food hygiene and safety in line with GMP standards
7. The use of prefabricated bags, high sealing quality, improve product quality.


Work Process

1. feed bags, 2. open bags, 3. fall material, 4. add liquid, 5. reserve, 6.reserve, 7. pass bags, 8. reserve (vacuum),
1. receive bags, 2. close the lid, 3. vacuum one time, 4. vacuum twice, 5. vacuum three times, 6. vacuum four times, 7. seal, 8. seal&cool,, 9. deflate, 10. open the lid and output.

Main Technical Parameter

Model MB8ZK10-130A MB10ZK12-130G MB8ZK10-150 MB8ZK10-200
Bag Specifications W:70-130mm  L:80-210mm
W:70-150mm  L:80-230mm W:80-200mm  L:80-300mm

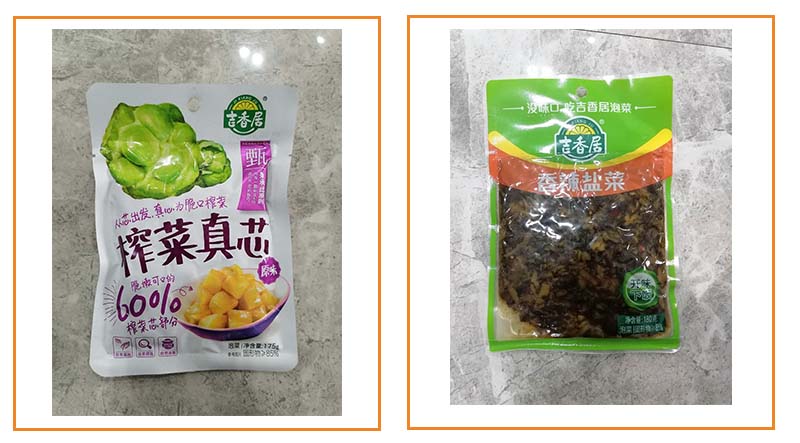

Bag Type  Stand-up bags ,handbags ,4-side sealing bags ,3-side sealing bags , paper bags , compound bags ,etc .
Filling Range  10-350g
Packing Speed 50-75bags/min 60-90bags/min 35-55bags/min 35-45bags/min
Weight 2400kg 3000kg 2600kg 2700kg
Host Power  4KW
Drive Power  3-phase 5-wire system  380V  50HZ
Dimensions 3150*3000*2400mm
Air Consumption >0.4m3/min (compressed air provided by the user )
Cooling Water Cooling water :15 oC- 20oC  , 3 liters/min
