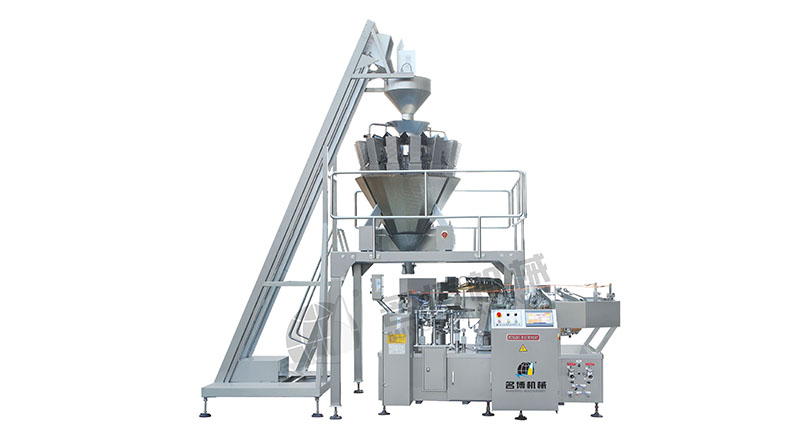

southeast-asian-cuisine automatic packaging machine


Main Performance and features

1. Automatic vacuum packaging machine separated by two rotary body composition (filling and vacuum systems

2. Easy to operate: PLC touch screen control, man-machine interface operating system intuitive and easy to operate

3. Easy to adjust: real fully automated. Just part of the required input parameters from the man-machine interface, all parts of the packaging

machine can be adjusted to the desired command

4. The high degree of automation: up automatic vacuum requirements, weighing and packaging process to achieve unmanned. If there is fault alarm occurs

5. Perfect prevention systems, may only detect whether it opens the bag, and opening bags is complete, in the case of inappropriate feeding

does not feed heat sealing. No wasting bags and material, it costs savings

6. The device complies with hygienic standards of food processing machinery, equipment and material contact parts made of 304 stainless

steel or other materials with food hygienic requirements processing and ensure food hygiene and safety in line with GMP standards

7. The use of prefabricated bags, high sealing quality improve product quality

Work Process

1. feed bags, 2. open bags, 3. fall material, 4. add liquid, 5. reserve 6. reserve, 7. pass bags, 8. reserve(vacuum)
1. receive bags, 2. close the lid, 3. vacuum one time, 4. vacuum twice 5. vacuum three times. 6. vacuum four times. 7 seal. 8. seal&cool 9. deflate, 10. open the lid and output

Main Technical Parameter

Model MB8ZK10-130A MB810ZK12-130G MB8ZK10-150 MB8ZK10-200
Bags Specifications W:70-130mm     L:80-210mm W:70-150mm L:80-230mm
W:80-200mm L:80-300mm
Bag Type Stand-up pouches,handbags ,4-side sealing bags ,3-side sealing bags ,paper bags ,compound bags ,etc .
Filling Range 10-150 g 10-150 g
10-500 g 10-1000g
Packing Speed  50-75 bags/min 60-90 bags/min 35-55 bags/min 35-45 bags/min
Weight 2400kg 3000kg 2600kg 2700kg
Host Power 4KW
Drive Power  3-phase  5-wire system  380V 50HZ
Dimensions  4500*2300*3300mm (without elevator height )
Air consumption > 0.4m3 /min (compressed air provided by the user )
Cooling Water Cooling water : 15oC- 20oC  、3 liters/min
