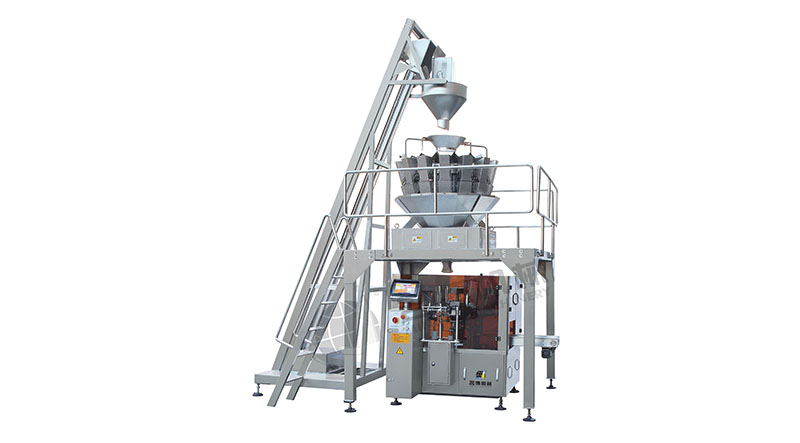

Pet food packaging machine
pet food.

Summary:

Bag-given packaging machine together with the multi-heads weigher, with accurate measurement, fast packaging speed, stable operation and wide application range and other advantages, win the praise of customers, making the food industry packaging workshop into a mechanization .

Main Performance and features

• Large capacity auto bag feeding

• Dual stage seal jaws for quality seals

• Auto bottom bag support

• Electronic quick adjusts for bag size

• No product detection saves bag cost

• No bag detection with alarm and reject .

• Premade pouch packaging solution

• automatic metering accurately by multi- heads weigher .

Work Process

1.Feeding bag, 2. coding 3 opening bag, 4. filling vibration (1 time, 5. filling 2 time),6. Sealing( 1 time),7. Sealing(2 time) ,8 forming output

Industry

Main Technical Parameter

Model	MB8-200
Bag Specifications	W:70-200mm L:100-300mm
Bag Type	Stand-up bags , handbags , zipper bags , 4-side sealing bags ,3-side sealing
Filling Range	20-5000g
Packing Speed	35-55bags/min	15-45bags/min
Weight	1500kg	1800kg
Host power	2.5kw
Drive power	3-phase 5-wire system 380V 50HZ
Dimensions	330028003300mm	380028003300mm
Air consumption	<0.4m³/min (compressed air provided by the user)
