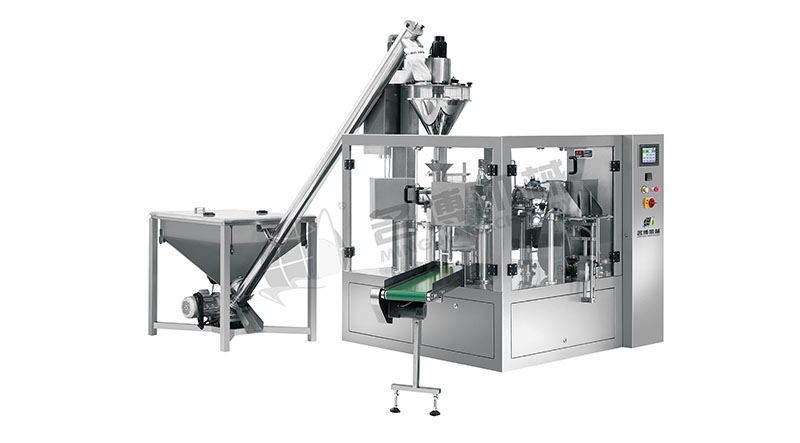

powder packaging machine
powder
powder
Summary:
Main Performance and features
This set of equipment is composed of pouch packing machine and screw scale, applicable to the stand up pouch, hand bag, zipper bag,four sides sealing bag, three sides sealing bag, paper bag, compound bag and so on .
Work Process
1.feed bag , 2. coding (option), 3. open bag. 4.fall material , 5.sweep dust & vibration 6、6.seal , 7.seal , 8.forming and output.
Industry
Main Technical Parameter
| Model | MB8-200 | MB8-300 |
| Bag Specification | W:70-200 mm L: 100-300 mm | W:170-300 mm L：200-500 mm |
| Bag Type |
Stand-up bags ,handbags ,zipper bags , 4-side sealing bags ,3-side sealing bags , paper bags ,M-type bags ,compound bags ,etc . |
|
| Filling Range | 10-1000g | 20-300g |
| Packing Speed | 35-55bags/min | 15-45bags/min |
| Weight | 1500kg | 1800kg |
| Host Power |
2.5KW |
|
| Drive Power |
3-phase 5-wire system 380V 50HZ |
|
| Dimensions | 3300*2800*3300mm | 3800*2800*3300mm |
| Air Consumption |
< 0.4m3 / min (compressed air provided by the user) |
|
Sample
Pro Video
