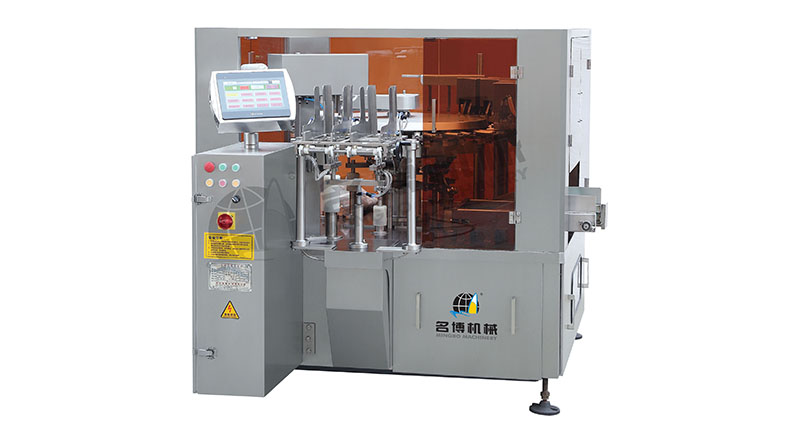

Nuts and dried fruits packaging machine
Nuts and dried fruits


Main Performance and features

This equipment matches the preformed pouch rotary packaging machine with a variety of measurement method such as multi-head weigher, liquid & paste filler , pickle measurement machine, powder auger filler

Work Process

1.Feed bag, 2. code, 3. open bag, 4. fill& vibration, 5. fill(2 time), 6. seal(once), 7. seal(twice), 8. form & output.

Nuts and dried fruitsIndustry
Main Technical Parameter

Model  MB 8-200 C MB 8-300 C
Bags Specification  W:70-200 mm  L:100-300 mm W:170-300 mm L:200-500 mm
Bag Type  Stand-up bags ,handbags ,zipper bags ,4-side sealing bags ,3-side sealing bags ,paper bags ,M-type bags ,compound bags ,etc .
Filling Range  20-3000 g
Packing Speed  35-55 bags /min 15-45 bags/min
Weight 1500 kg 1800 kg
Host power  2.5 kw
Drive power  3-phase  5-wire system 380v  50HZ
Dimensions  2530*1400*1560mm 2950*1700*1560mm
Air consumption  <0.4 m3/min (compressed air provided by the user )

Nuts and dried fruits样品
