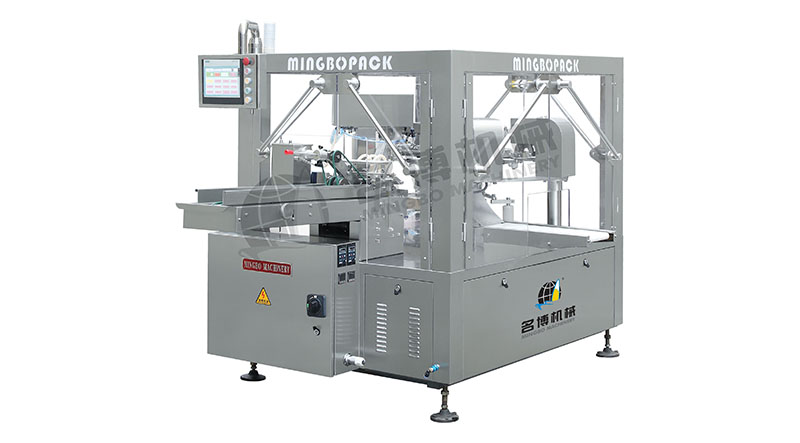

Candy packaging machine
candy

Summary:

Main Performance and features

This equipment matches the preformed pouch rotary packaging machine with a variety of measurement method such as multi-head weigher, liquid & paste filler , pickle measurement machine, powder auger filler

Work Process

1.Feed bag, 2. code, 3. open bag, 4. fill& vibration, 5. fill(2 time), 6. seal(once), 7. seal(twice), 8. form & output.

Industry
candyIndustry
Main Technical Parameter

Model MB8-200C MB8-300C
Bags Specifications W:70-200mm  L:100-300mm W:170-300mm  L:200-500mm
Bag Type Stand-up bags ,handbags , zipper bags ,4-side sealing bags , 3-side sealing bags ,paper bags , M-type bags ,compound bags and so on .
Filling Range 20-3000g
Packing Speed 35-55bags /min 15-45bags /min
Weight 1500kg 1800kg
Host Power 2.5kw
Drive Power 3-phase 5-wire system 380V 50HZ
Dimensions 2530*1400*1560mm 2950*1700*1560mm
Air Consumption <0.4m3 /min (compressed air provided by the user )

Sample
candy样品
