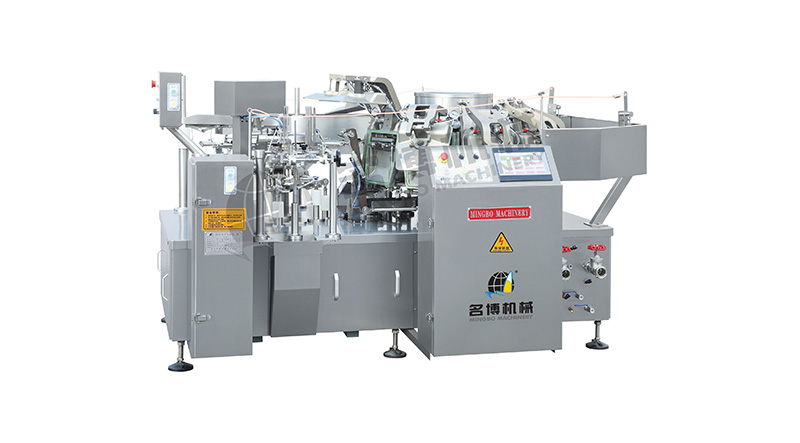

Spicy Products Packaging Machine
spicy products


Main Performance and features

1. Automatic vacuum packaging machine separated by two rotary body composition (filling and vacuum systems)
2. Easy to operate: PLC touch screen control, man-machine interface operating system, intuitive and easy to operate
3. Easy to adjust: real fully automated. Just part of the required input parameters from the man-machine interface, all parts of the packaging machine can be adjusted to the desired command
4. The high degree of automation: up automatic vacuum requirements, weighing and packaging process to achieve unmanned. If there is fault alarm occurs
5. Perfect prevention systems, may only detect whether it opens the bag, and opening bags is complete, in the case of inappropriate feeding does not feed heat sealing. No wasting bags and material, it costs savings
6. The device complies with hygienic standards of food processing machinery, equipment and material contact parts made of 304 stainless steel or other materials with food hygienic requirements processing, and ensure food hygiene and safety, in line with GMP standards
7. The use of prefabricated bags, high sealing quality, improve product quality
8. Suitable packaging materials range: Matching multiple metering which packs fish aberdeen, pickles, roasted nuts, spicy puffed, liquids and other materials

Work Process

1. feed bags, 2. open bags, 3. fall material, 4. add liquid, 5. reserve, 6.reserve, 7. pass bags, 8. reserve (vacuum),
1. receive bags, 2. close the lid, 3. vacuum one time, 4. vacuum twice, 5. vacuum three times, 6. vacuum four times, 7. seal, 8. seal&cool,, 9. deflate, 10. open the lid and output.

spicy productsIndustry
Main Technical Parameter




Bags Specifications





Bag Type

Stand-up pouches, handbags, zipper bags, 4-side sealing bags, 3-side sealing bags, paper bags, compound bags, etc.

Filling range


Packing speed

35-55bags/min(depending on the product features and filling weight)



Host power

4KW(no including vacuum pump)

Drive power

3-phase 5-wire system 380V  50HZ


2600×2200×1600mm(without elevator)

Air consumption

≥0.4m³/min( compressed air provided by the user)

Cooling Water

Cooling water: 15℃-20℃、3liters/min (recommended with cooler)

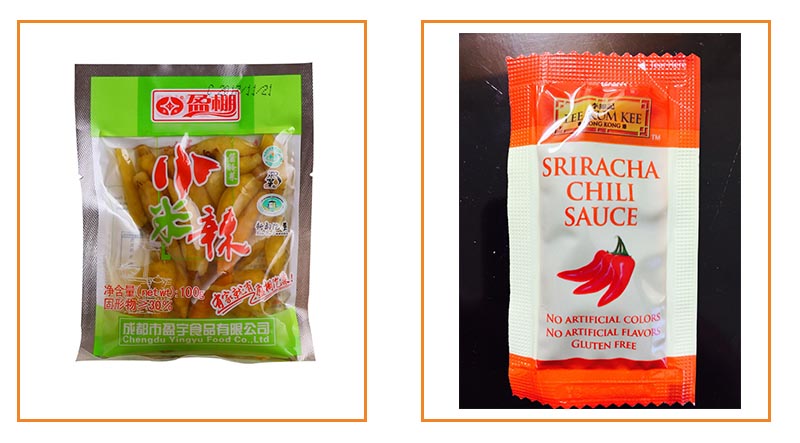

spicy products样品
