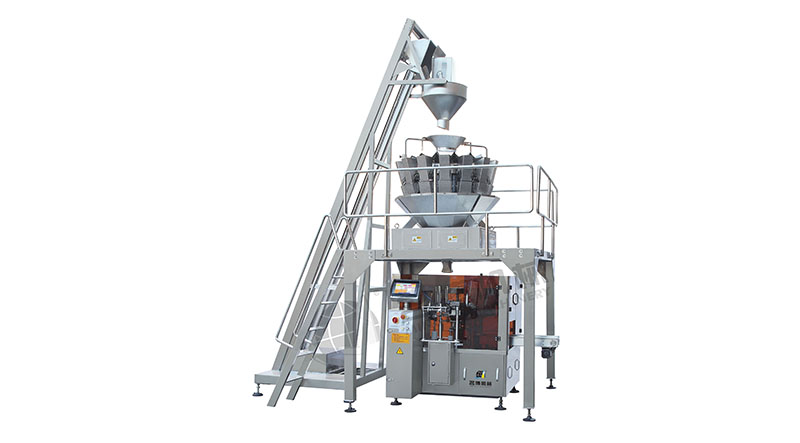

Snack Packaging Machine
snack
snack
Summary:
Main Performance and features
Bag-given packaging machine together with the multi-heads weigher, with accurate measurement, fast packaging speed, stable operation and wide application range and other advantages, win the praise of customers, making the food industry packaging workshop into a mechanization
Work Process
1.Feeding bag, 2. coding 3 opening bag, 4. filling vibration (1 time, 5. filling 2 time),6. Sealing( 1 time),7. Sealing(2 time) ,8 forming output
Industry
Main Technical Parameter
| Model | MB 8-200 G | MB 8-300 G |
| Bags Specifications | W: 70-200 mm L: 100-300 mm | W:170-300 mm L:200-500 mm |
| Bag Type | Stand-up bags ,handbags , zipper bags , 4-side sealing bags ,paper bags ,M-type bags ,Compound bags ,etc . | |
| Filling Range |
20-5000 g |
|
| Packing Speed | 35-55 bags/min | 15-45 bags |
| Weight | 1500 kg | 1800 kg |
| Host Power |
2.5 kw |
|
| Drive Power |
3-phase 5 -wire system 380V 50HZ |
|
| Dimensions | 3300*2800*3300mm | 3800*2800*3300mm |
| Air consumption |
< 0.4 m3 /min (compressed air provided by the user ) |
|

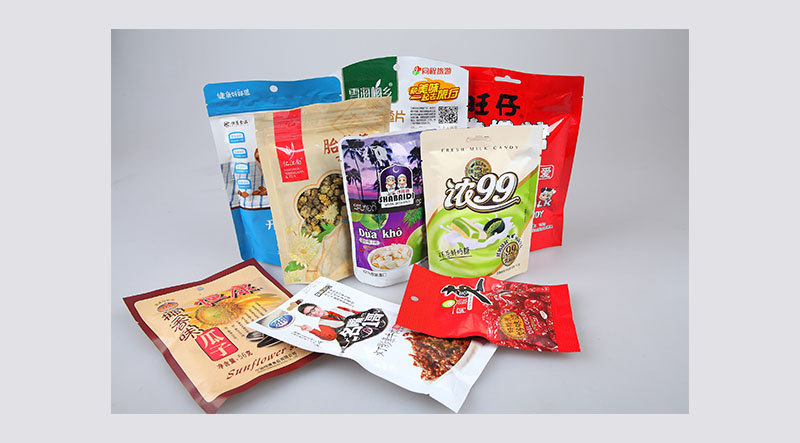

Sample
